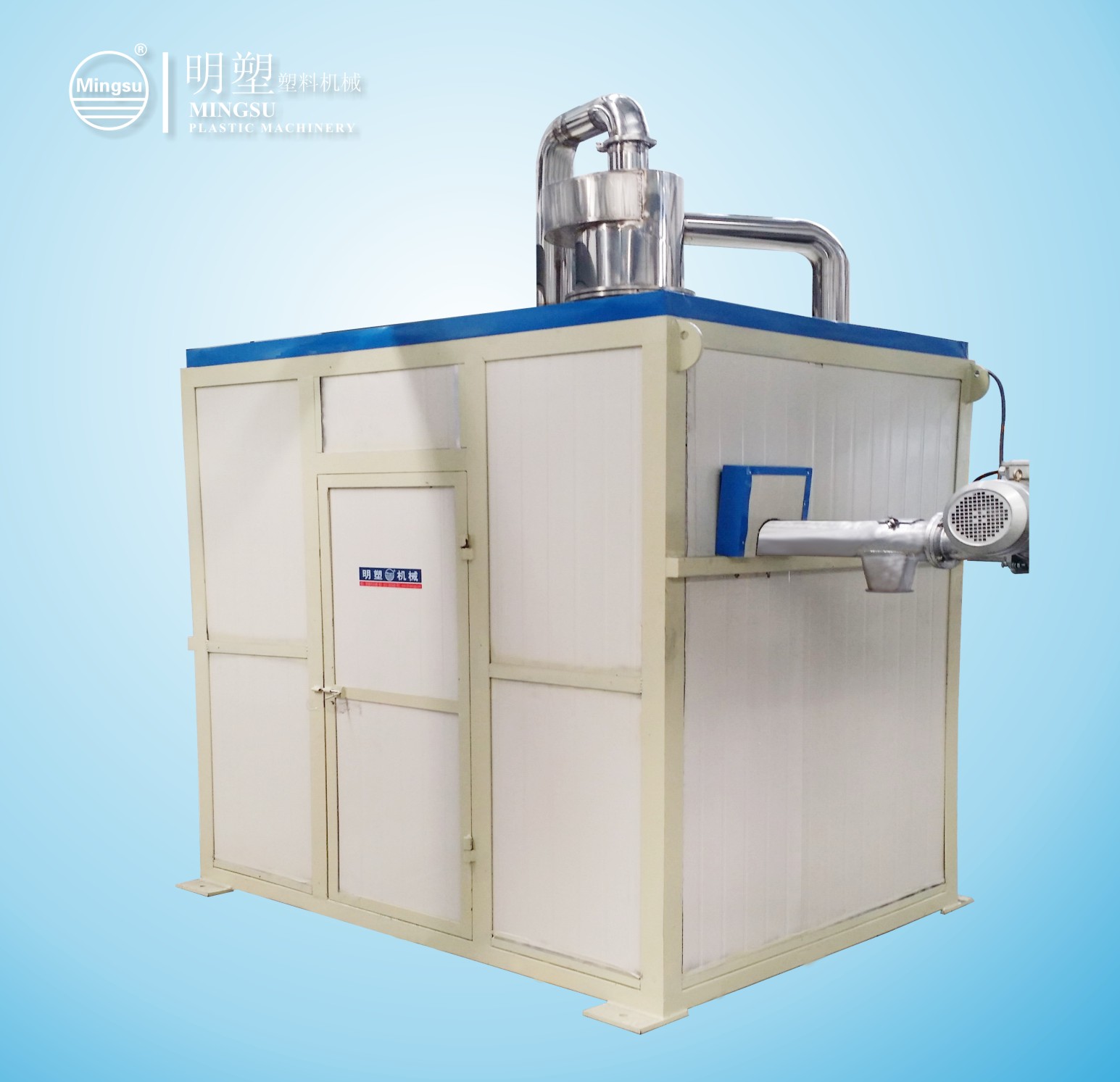

液氮磨粉机Liquid Nitrogen Grinding Mill
性能介绍Brief introduction:
液氮磨粉机使用液氮把塑料切片低温脆化后再磨粉,具有产量高,磨粉效果好的优点,特别适用于低熔指塑料切片的磨粉,每小时产量可以达到500--700公斤。
Froze by liquid nitrogen, raw materials become brittle and can be pulverized easily. Our Liquid nitrogen grinding mill has the advantages of high output and good quality mill etc., it’s specially suitable for low melt index plastic granules. The hourly output can reach 500-700kg.
使用范围Range of application:
该液氮磨粉机使用于在常温下无法粉碎的各种物料,广泛应用于各种化工、石化、机械、船舶、汽车行业、电子行业、服装、涂料、印刷、工程塑料、橡胶、鞋材、热塑性物料、热熔胶、尼龙、聚酯、聚丙烯、聚乙烯、热塑性弹性体TPU、TPEE、尼龙类PA11、PA1010、PA12、PA6、PA66、PA610共聚尼龙、聚酯类、聚四氟乙烯、EVA、食品行业(辣椒粉)、中西药材等等产品的超细粉碎。
This liquid nitrogen grinding mill is widely used to all kinds of plastic granules which can’t be crushed at normal temperature, such as all kinds of plastic materials from chemical, petrochemical, machinery, ship, automobile, electronics industry, clothing, coating, printing, engineering plastic, rubber, shoes material, thermoplastic material, hot melt adhesive, nylon, polyester, PP, PE, TPU, TPEE, PA11, PA1010, PA12, PA6, PA66, PA610, PTFE, EVA, food industry(paprika), Chinese and western medicine etc.
主要技术参数Main Technical Parameter:
型 号Model
| MS500 |
进料粒度 input material size | <6mm |
成品粒度output material size | 10-425(目mesh) |
产量范围output range | 500--700kg/h |
主轴转速main shaft running speed | 3000r/m |
磨盘数量 millstone quantity | 1个(pc) |
主机电机功率Main motor power | 55kw |
风机电机功率Fan motor power | 7.5kw |
喂料电机功率Feeding motor power | 2.2kw |
出料电机功率Discharge motor power | 2.2kw |
总功率Total power(kw) | 66.9kw |
外形尺寸(长×宽×高) Overall size(L×W×H) | 3800mm×2600mm×3900mm |
